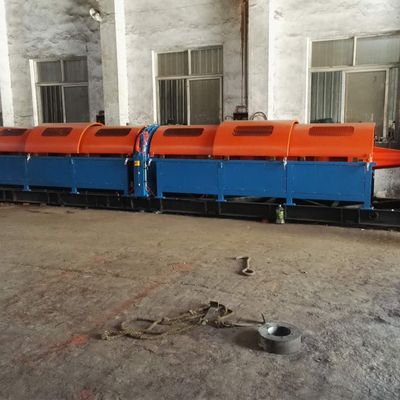

Multifunctional Tubular Stranding Machine for Copper Wire and Aluminum Cable

1.0 Sets
MOQ
Multifunctional Tubular Stranding Machine for Copper Wire and Aluminum Cable
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Usage: Multifunctional
基本情報
お支払配送条件
Supply Ability: 10 Set/Sets per Month
製品の説明

high quality JGGB-630/6 Tubular Stranding Machine

Diameter of inlet wire

Copper

Φ2.0~3.5mm

Aluminum

Φ2.5~5.0mm

Steel

Φ2.0~4.0mm

Stranded conductor(Max)

Φ5.0mm

Outer-diameter of outlet wire:(max)

400r/min

Lay range

41.3~305.3mm (27 steps)

Speed of outlet wire

16.51~122.11m/min (27 steps)

Diameter of capstan

Φ1250mm

Central pay-off drum size

PND630mm

Pay-off drum size

PND630mm

Take-up/traversing device

PN1600mm

Main motor Power

55kw(AC)

1. What service can you supply?

Engineers available to service machinery overseas.

2. What’s the packages?

The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated or use polywood case.

3. Can you do turn-key project?

Yes, We have a mature technical team that can do turnkey engineering.

4. What’s the payment terms?

30% by TT as deposit, 70% by TT or LC at sight vefore delivery.

5. What’s your advantages?

As a member of the family business, we have a copper production plant. Therefore, we are more familiar with the production process. At the same time, we have professional engineers and can get more direct use feedback. We have a good cooperative relationship with most of the domestic machinery manufacturers, so we can get a better price.

6. What’s the delivery time?

Usually 60 working days.
