ホーム /製品/管状のリード編み機/BAOCHUAN High Quality Cable Cutting and Stranding Stripping and Tubular Strander Screening Machine

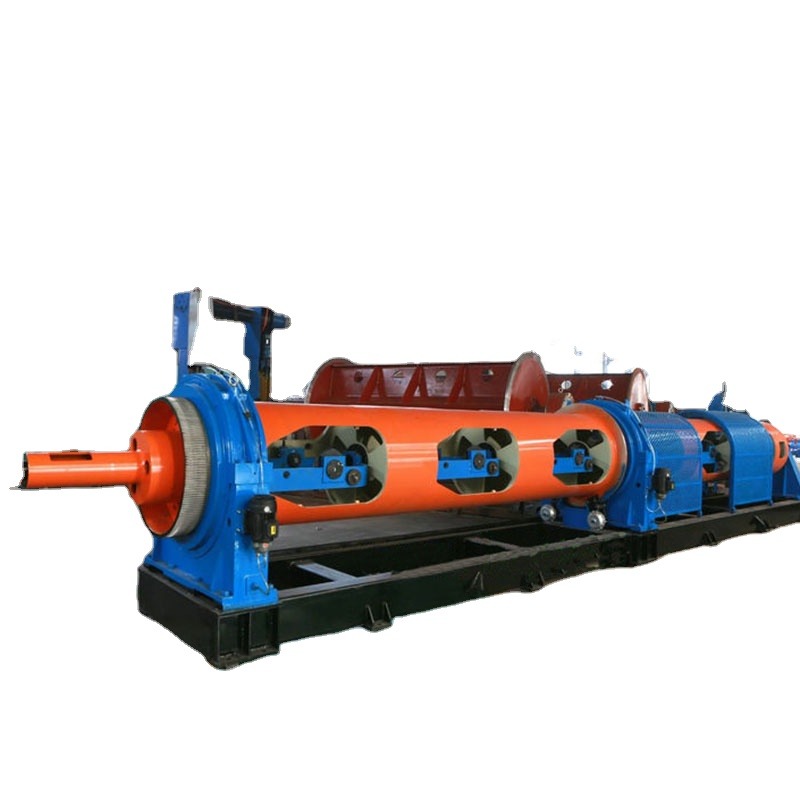

BAOCHUAN High Quality Cable Cutting and Stranding Stripping and Tubular Strander Screening Machine

1 Set
MOQ
$5,800.00(1 - 4 Sets) $5,600.00(>=5 Sets)
価格
BAOCHUAN High Quality Cable Cutting and Stranding Stripping and Tubular Strander Screening Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Usage: Cable Cutting and Stripping
inlet wire: 1.5-6mm
Conductor: 1-4mm
Cable outer diameter: 25mm
inner pay-off reel: PN630
Closing reel specifications: PN630-1250
Main motor power: 45KW (AC)
Equipment center height: 1000mm
Function: Plastic insulation
Keywords: Tube stranding machine
Material: Aluminum Alloy
基本情報
お支払配送条件
Packaging Details: nude, plastic film packing or as per customers requirement for Catenary shot blasting machine used for workpiece surface strength
Supply Ability: 10 Set/Sets per Month Catenary shot blasting machine used for workpiece surface streng
製品の説明
Product Description
Tube stranding machine parts
3.1Φ400-630 manual pay-off rack 1 set
3.2 6 trays, 1 set each
3.3 Wire formwork (each set is assigned a corresponding number) 1 set
3.4 Φ1000 dual traction device 1 set
3.5Φ1250 shaftless wire collecting and arranging rack 1 set
3.6 Earth axis transmission system 1 set
3.7 Electronic control system 1 set
3.8 Safety fence 1 set
3.9 Press mold frame 3 sets according to customer's mold size requirements
Size Information
Incoming wire diameter Core wire
Φ1.5～Φ6mm Conductor 1.0-4.0mm
Cable outer diameter
Ф25mm
 Pipe stranded inner pay-off reel
PN φ630
Closing reel specifications
PN630-1250
Main motor power
45KW (AC)
 Equipment center height
 1000mm
Related Products
Company Introduction
Wuxi Baochuan/Shuochuan Machinery Manufacture CO., Ltd was established in 2009. We always insist on the company ideology of “High quality, consistent improvement, conscientious service”,and spare no effort to build our brand and service.
Wire and cables equipment researching, manufacturing and marketing is our main business, which contains Large/Medium/Fine Wire Drawing Machine series, Extruding Machine Series, Annealing Machine series, High-speed Auto Stranding Machine series, Take Up Machine series, Full Auto Coiling and Packing System, Caterpillar Machine series, Single Stranding Machine with microcomputer, taping Machine, and Accessories for Auxiliary Equipment, as well as the customization of related electromechanical equipment.
FAQ
Q: Could you please arrange the installation?
A: Yes, we could and the buyer pay the charge.

Q: Could you arrange the production education?
A: Yes, we could do it on line. The buyer pay the charge if we fly to your country.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment.

Q:Can you produce according to the samples or designs?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q:Do you test all your goods before delivery?
A: Yes, We have 100% test before delivery.
