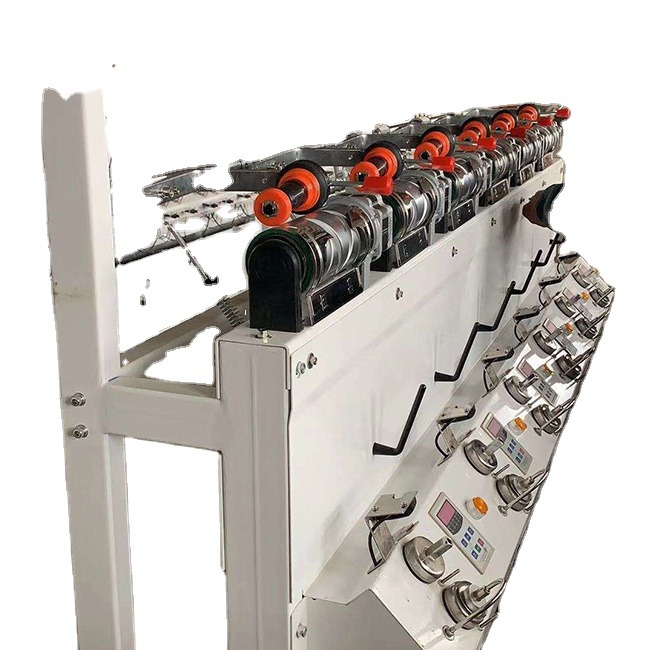

Product name | auto cone yarn bobbin winding machine |
Winding shape | Flat tube or cone drun |
Wind motion path | 210mm |
Winding bobbin | 0° 3° 30’ 4°20’ 5° 57 |
Power supply | Three-phase 380 v 50/60 hz |
Layout | Double-sided,1-10section (section 12) |
Transmission | Single spindle independent ac motor drive |
Power Consumption | 0.09 kw/ingot |
Package Diameter | 250 mm |
Yam speed | 400-900 - m/min |
Electronic wobble frequency anti-patterning function | Inverter control |
Length counting device | optional |
Yarn tension and waxer adjusting device | Each spindle is provided with rotary self-cleaning tensioner and waxing |
Yarn break control device | Electronic yarn breakage stops |
Speed regulation | Frequency control of motor speed |
Blows the inflow cleaner | optional |
Dimensions | Each spindle 205*1000*1500mm |
